Surface treatment: polishing, chamfering.
application area:Aerospace, aviation, military industry,
light industry, chemical industry, textile, medical,
petrochemical and other fields.

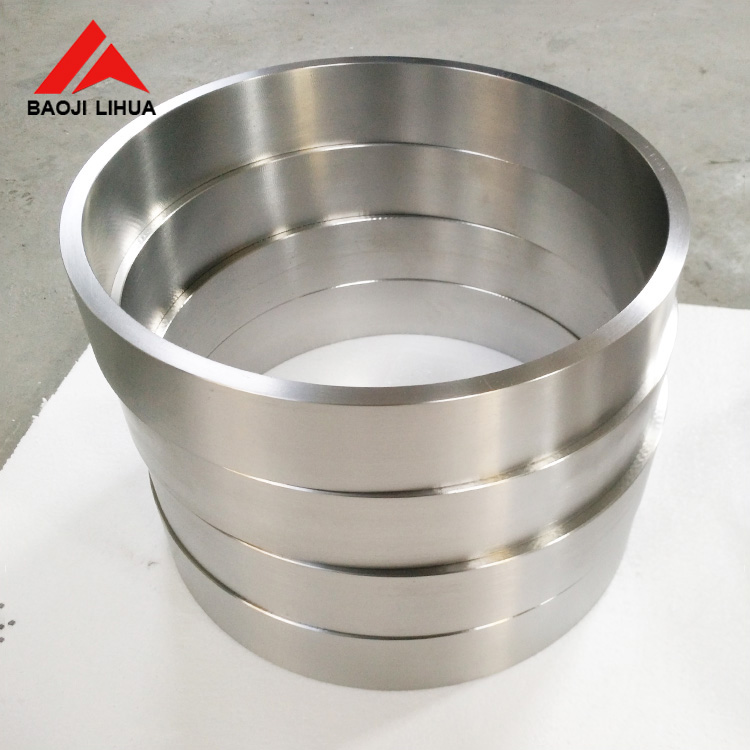

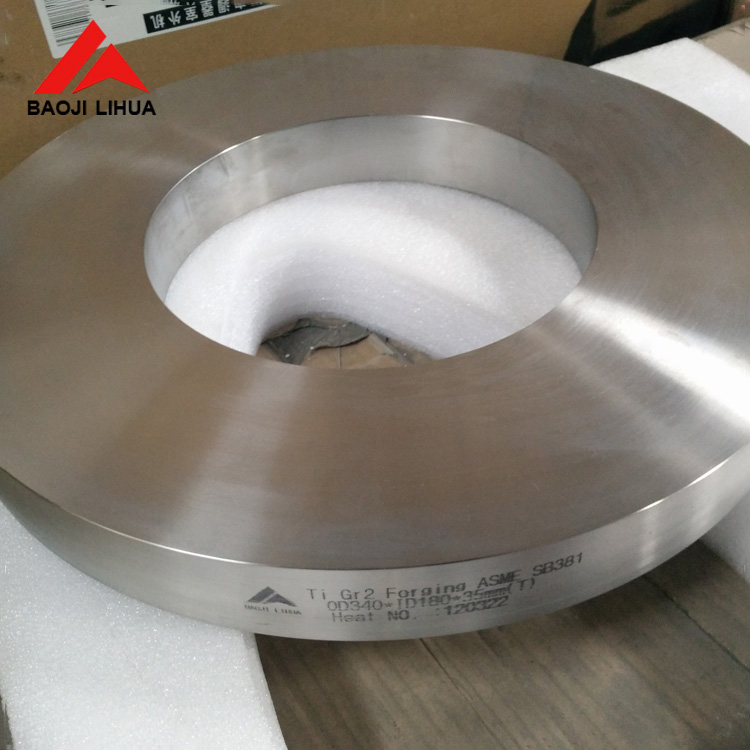

Gr7 Titanium Forged Ring Titanium Forgings
Product name: Grade 5 Titanium Ring
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.
Send Inquiry
Chat Now
Product Introduction

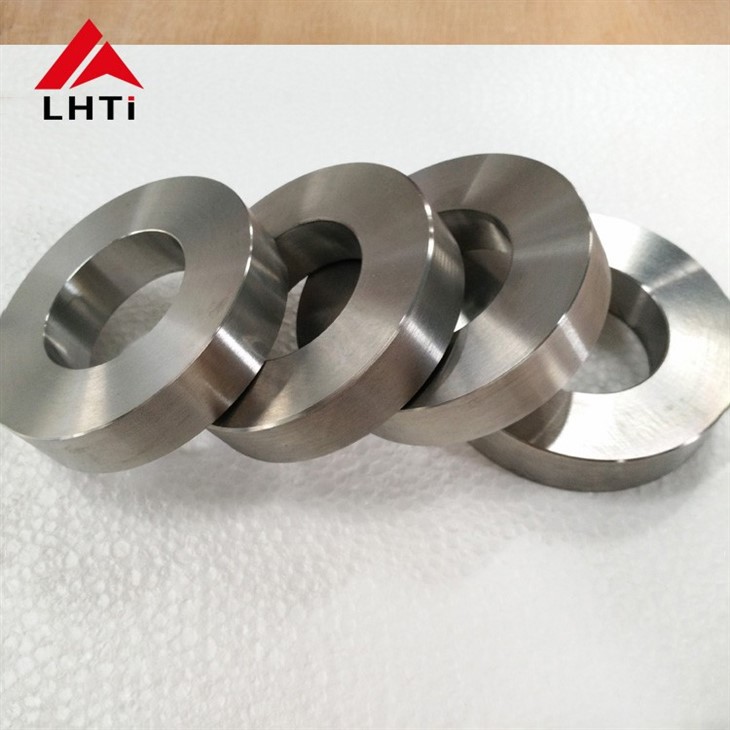

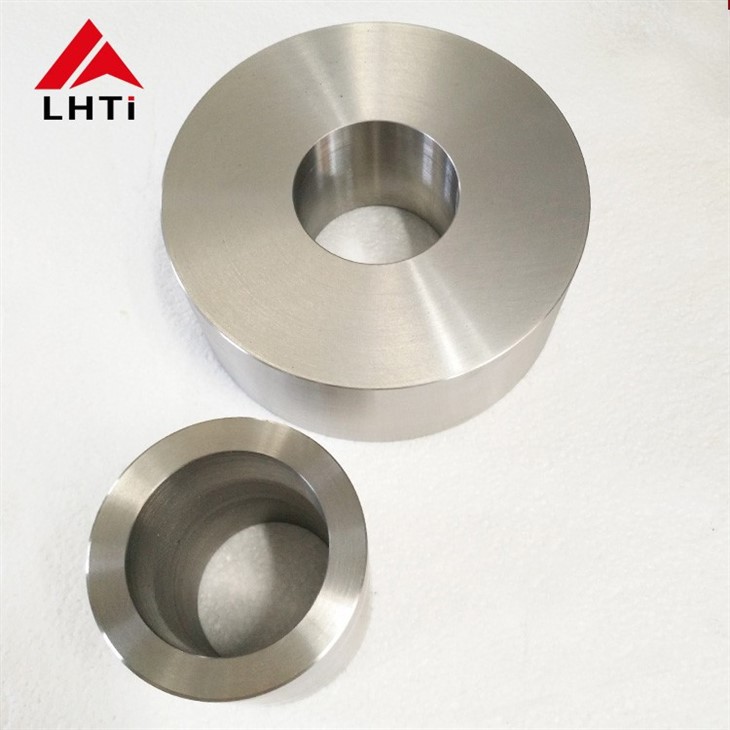

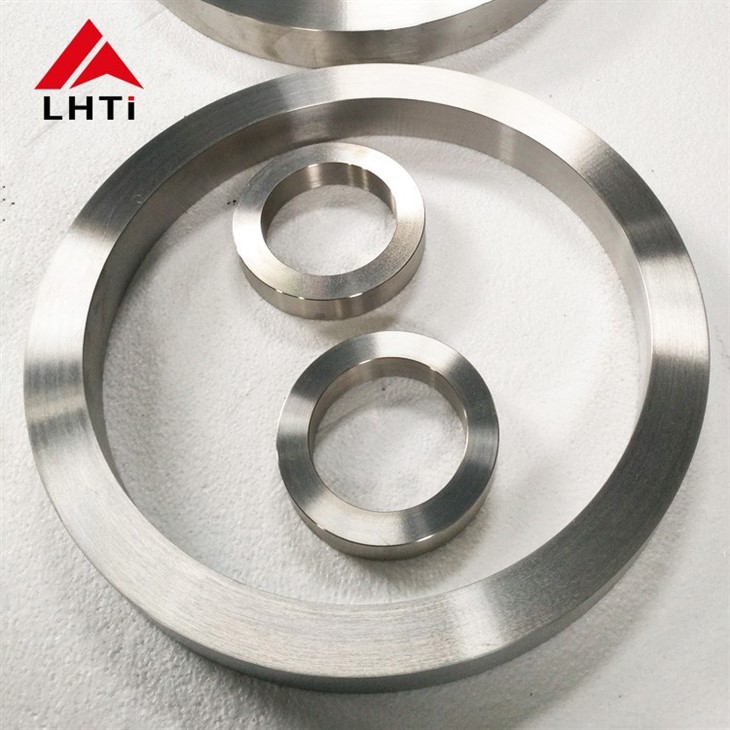

Gr7 Titanium Forged Ring Titanium Forgings
Gr7 Titanium Forged Ring Production process
Forging, die forging, rotary forging, precision forging and welding
Testing
Tensile strength test, hardness test, chemical composition test, ultrasonic test, radiographic test, penetration coloring test.
Surface
Surface treatment: polishing, chamfering.
Surface quality: the surface roughness Ra value of the two end faces shall not be greater than 3.2l μ m (subject to the requirements of ultrasonic inspection), the surface roughness Ra value of the inner and outer sides shall not be greater than 12.5 μ m (Ra value shall not be greater than 3.2 μ m when ultrasonic testing is required for the outer circumferential surface), and the chamfer radius shall be 5-15mm.
Application area
Aerospace, aviation, military industry, light industry, chemical industry, textile, medical, petrochemical and other fields.
