Titanium Weld Wire

1. High strength: Titanium welding wire is very strong and can withstand high pressures and loads.

2. Corrosion resistance: Titanium has excellent corrosion resistance, making it ideal for use in harsh or corrosive environments.

3. Light weight: Titanium is a lightweight metal, so it can reduce the weight of the final product, making it ideal for use in aerospace and other industries where weight is a concern.

4. Biocompatibility: Titanium is biocompatible, meaning it is safe for use in medical implants, such as artificial joints.

5. Easy to weld: Titanium is easy to weld and can be welded using a variety of methods, including TIG, MIG, and plasma welding.

6. Long life cycle: Titanium welding wire has a long life cycle, making it cost-effective over time.

Product name: Titanium weld wire / titanium welding wire

Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12

Specification: φ0.8～φ7.0

Shape: Spool wire, coiled wire, straight wire

Standard: AWS A5.16

Surface: Pickling,polishing

Precautions for titanium welding wire welding:

1. Constructors and welders should wear clean white gauze gloves (cotton gloves are strictly prohibited).

2. It is strictly forbidden to touch and touch iron objects by hand in the treated welding area.

3. The welding work should be carried out indoors as much as possible, and the ambient wind speed should be ≤0.5m/s to avoid being affected by draught.

4. When welding, short arc welding should be used as much as possible, with a small welding heat input, and the nozzle and the weldment should maintain an angle of 70-80 degrees.

5. When the butt pipe is positioned welding, the butt gap is generally about 0.5mm.

6. Each weld should be completed as much as possible at one time. The welds that must be welded should be cleaned up before welding. The length of the weld lap is 10-15mm.

7. During welding, the welding torch should not swing left and right, and the melting end of the welding wire should not be moved out of the gas protection zone.

8. The gas should be supplied in advance when welding and starting the arc, and the welding torch should not be lifted immediately when the arc is extinguished. The gas supply should be delayed until the temperature drops below 250℃.

9. The distance between the gas shield and the welding torch should be the shortest, and the gap in contact with the pipe wall should be minimized. When performing pipe butt welding, in order to meet the requirements of single-sided welding and double-sided forming, the welding is carried out in two parts: one is the back cover welding (the filling material is not necessary for the back cover welding), and the other is the forming welding. In multi-layer welding, you must wait for the previous bead to cool down before welding the next bead.

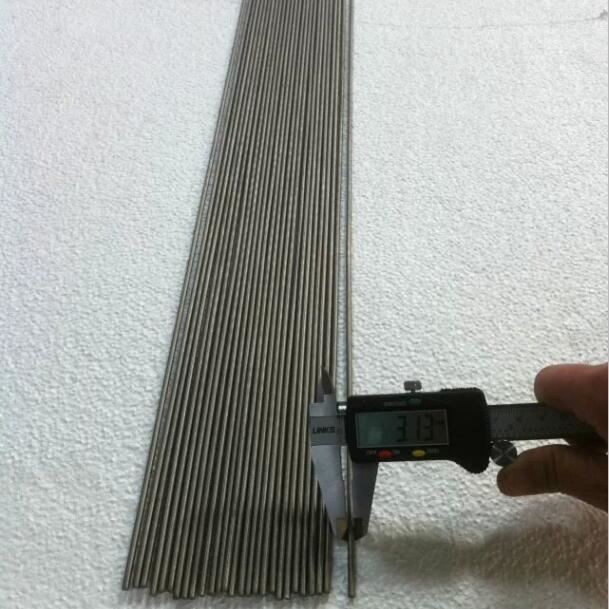

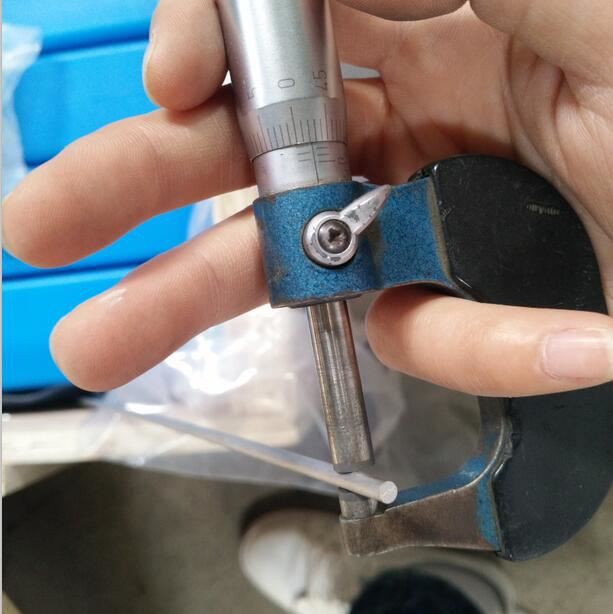

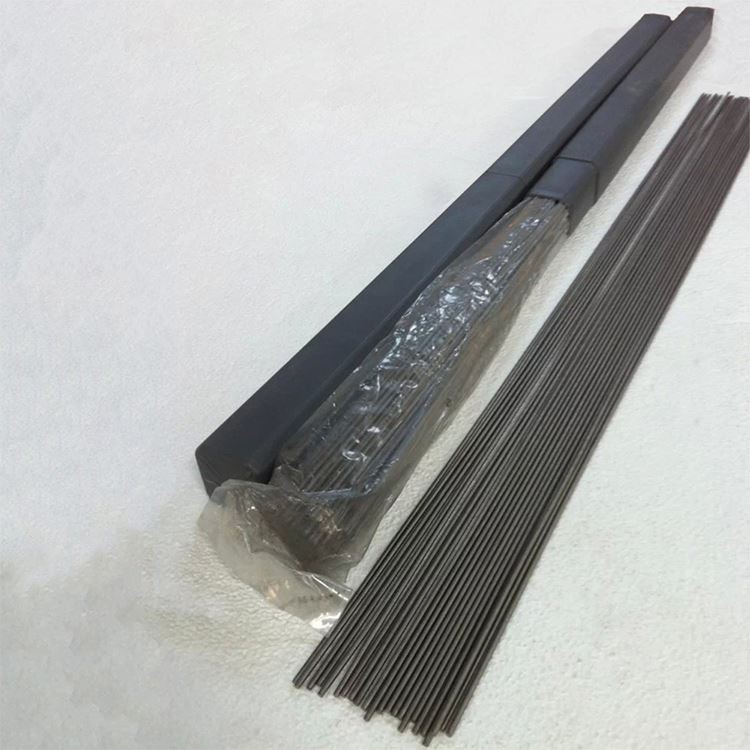

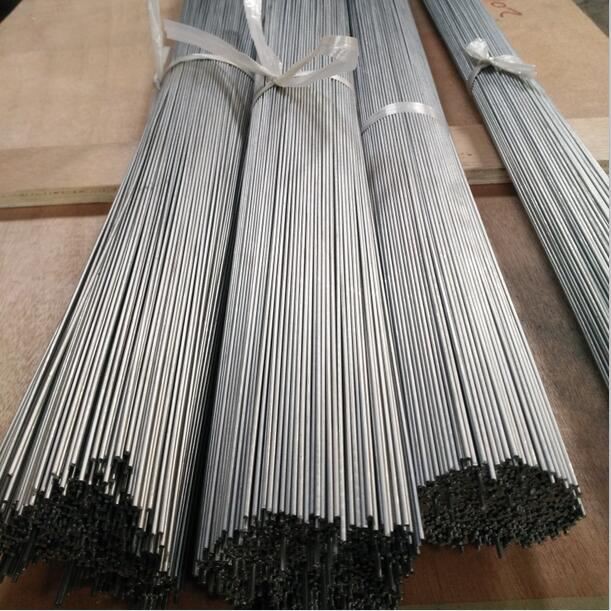

Detailed images:

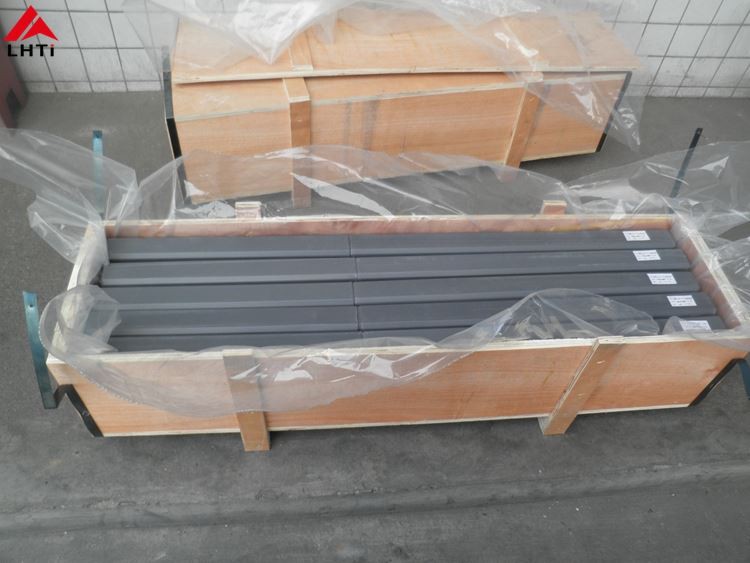

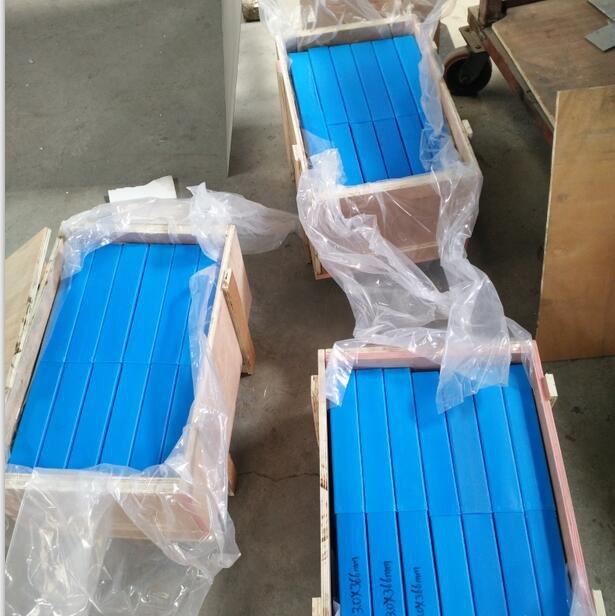

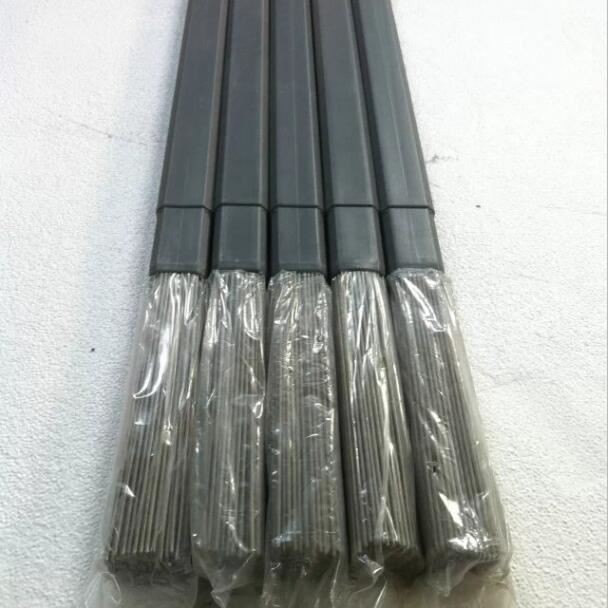

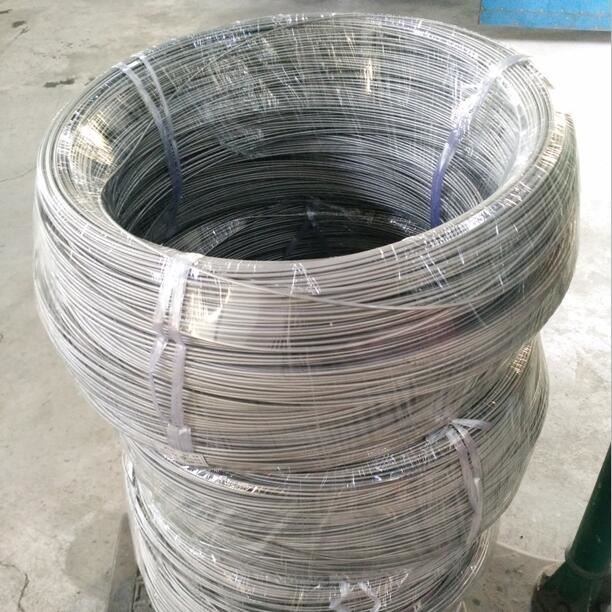

Packaging and shipping:

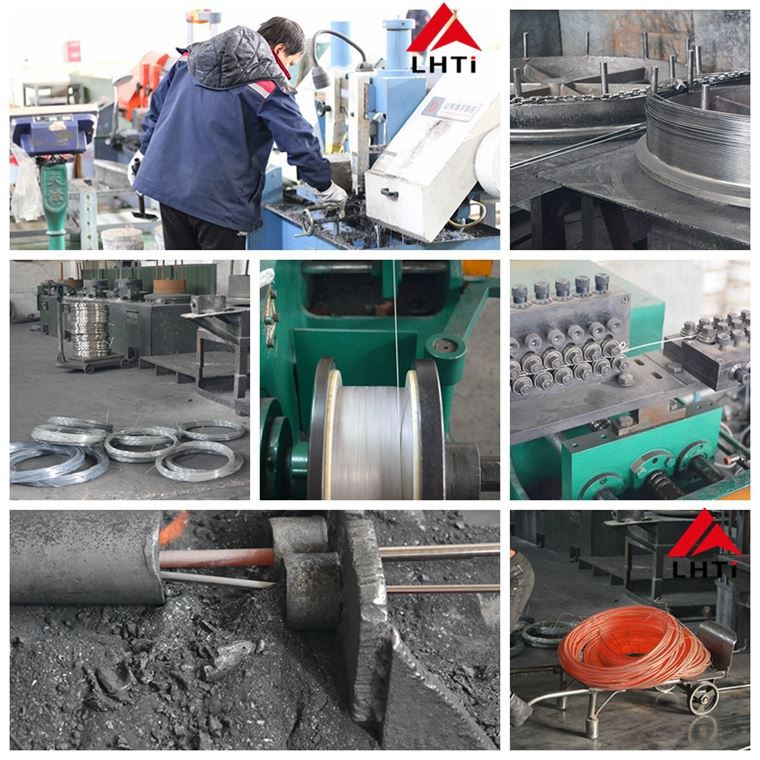

About our company:
