Titanium Filler Rod
Product Name: Titanium Welding Rod
Standard: AMS 4951
Material: ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5, ERTi-7, ERTi-12
Unit Price: $25usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Bright
Standard: AMS 4951
Material: ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5, ERTi-7, ERTi-12
Unit Price: $25usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Bright
Send Inquiry
Chat Now
Product Introduction
Product Information of Titanium Filler Rod
Grade: ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5, ERTi-7, ERTi-12
Standard: AWS A5.16
Size: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Shape: Straight, Spool, Coil
Surface: Polishing, Pickling
Available Diameter, Type of Titanium Filler Rod
| Size (mm) | Φ0.8 | Φ 1.0 | Φ1.2 | Φ1.6 | Φ2.0 | Φ2.4 | Φ 2.5 | Φ3.0 | Φ3.2 | Φ 4.0 | Φ4.8 | Φ 5.0 |
| Size (inch) | 0.031" | 0.039" | 0.047" | 0.062" | 0.079" | 0.093" | 0.098' | 0.12" | 0.125" | 0.16' | 0.19' | 0.20' |
| Straight | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||
| Spool | √ | √ | √ | √ | ||||||||
| Coil | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Surface
| Titanium Filler Rod | ||||
| Finish Type | Available Shapes | Minimum Diameter | Diameter Tolerance | Price Leval |
| Acid Washed | Coil or Straight | 0.2mm | Normal | Lower |
| Polished | Coil or Straight | 0.2mm | Normal | Medium |
| Grinding Polished | Only Straight | 0.8mm | Accurate and can be very small | Higher |

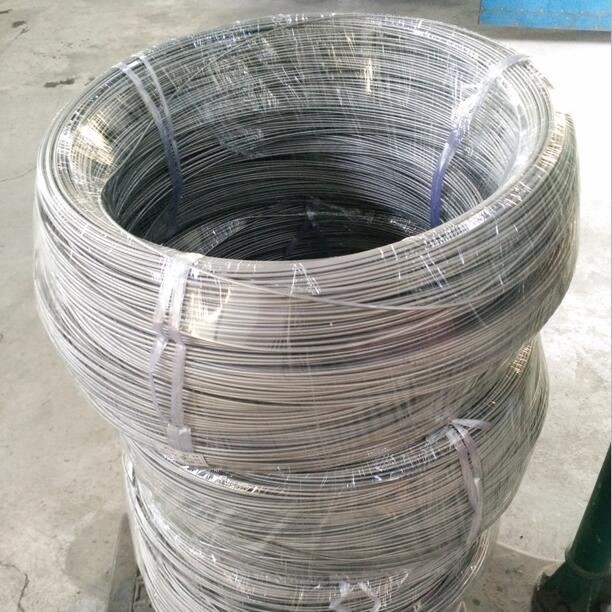

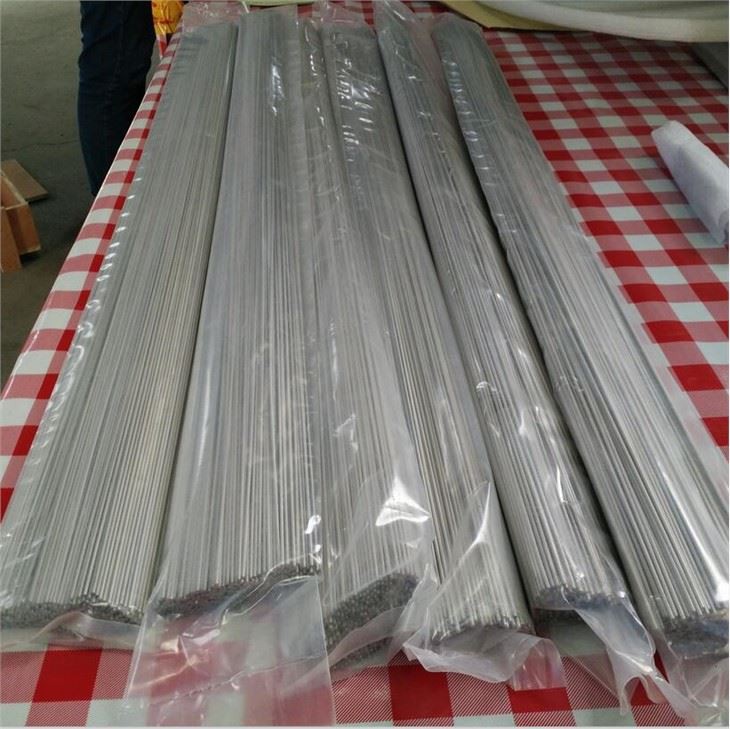

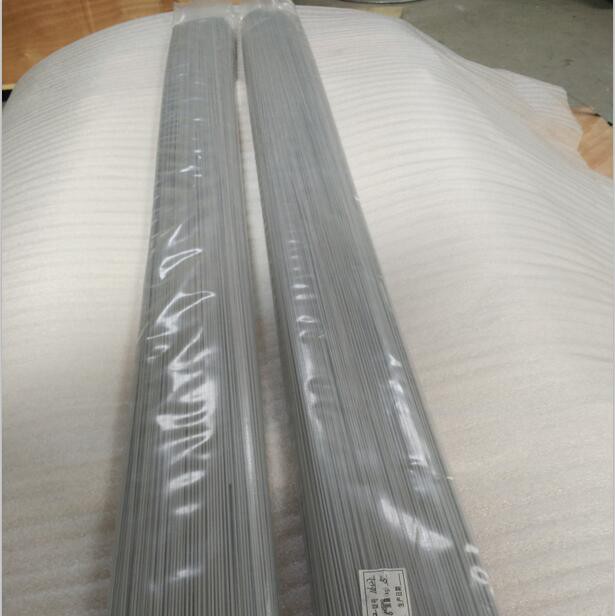

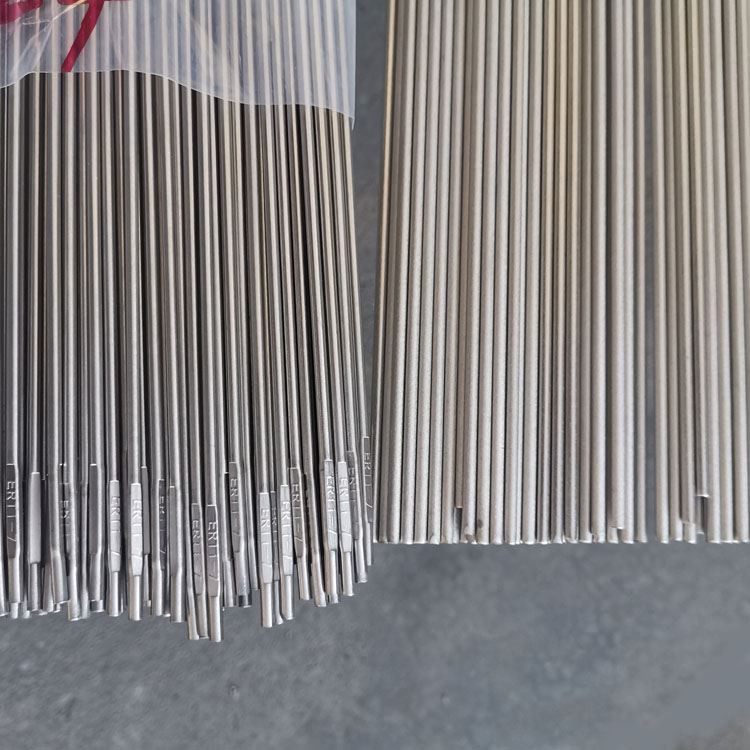

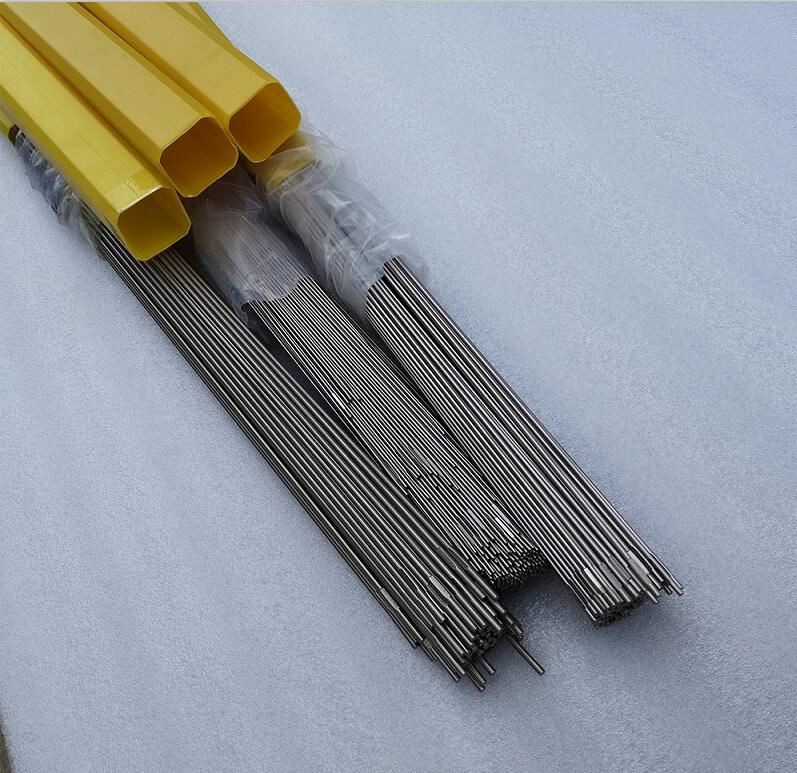

Detailed Images of Titanium Filler Rod
