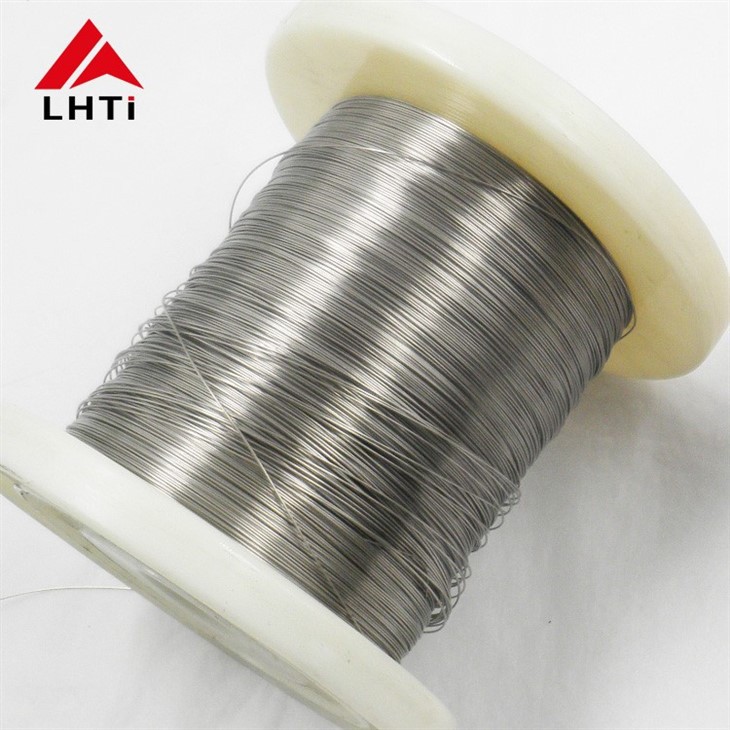

High Strength Welding Titanium Wire

High Strength Welding Titanium Wire

Product Name: Titanium Weld Wire
Standard: AWS A5.16
Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12
Unit Price: $21.5usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Pickling,polishing
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium wire manufacturer

Send Inquiry

Chat Now

Product Introduction

ERTi-2 titanium welding wire Application Fields:

• Welding field

• Aerospace

• Electronic product welding

• Metal welding

• Titanium product welding

ERTi-2 titanium welding wire has a series of excellent properties unmatched by other metal materials, so it has developed rapidly in recent years and has been rapidly and widely used in high-tech fields such as the aerospace military. All countries in the world attach great importance to the research and development of titanium alloys, and constantly develop new titanium alloy materials to expand the application of titanium and titanium alloys.

ASTM Base Metal Grade	Base metal		Normal composition	Recommended Filler Metal
	UTS(min.) ksi[Mpa]	YS(min.) ksi[Mpa]
Grade 1	35[240]	20[138]	Unalloyed Ti CP1	ERTi-1
Grade 2	50[345]	40[275]	Unalloyed Ti CP2	ERTi-2
Grade 4	80[550]	70[483]	Unalloyed Ti CP4	ERTi-4
Grade 5	130[895]	120[828]	Ti 6AL-4V	ERTi-5
Grade 7	50[345]	40[275]	Ti 0.15Pd	ERTi-7

AWS	CHEMICAL SPECIFICATIONS
AWS A5.16	UNS	C	O	N	H	I	Al	V	Pd
	Number
ERTi 1	R50100	0.03	0.03-0.10	0.012	0.005	0.08	-	-	-
ERTi 2	R50120	0.03	0.08-0.16	0.015	0.008	0.12	-	-	-
ERTi 4	R50130	0.03	0.08-0.32	0.025	0.008	0.25	-	-	-
ERTi 5	R56400	0.05	0.12-0.20	0.03	0.015	0.22	5.5-6.7	3.5-4.5	-
ERTi 7	R52401	0.03	0.08-0.16	0.015	0.008	0.12	-	-	0.12-0.25

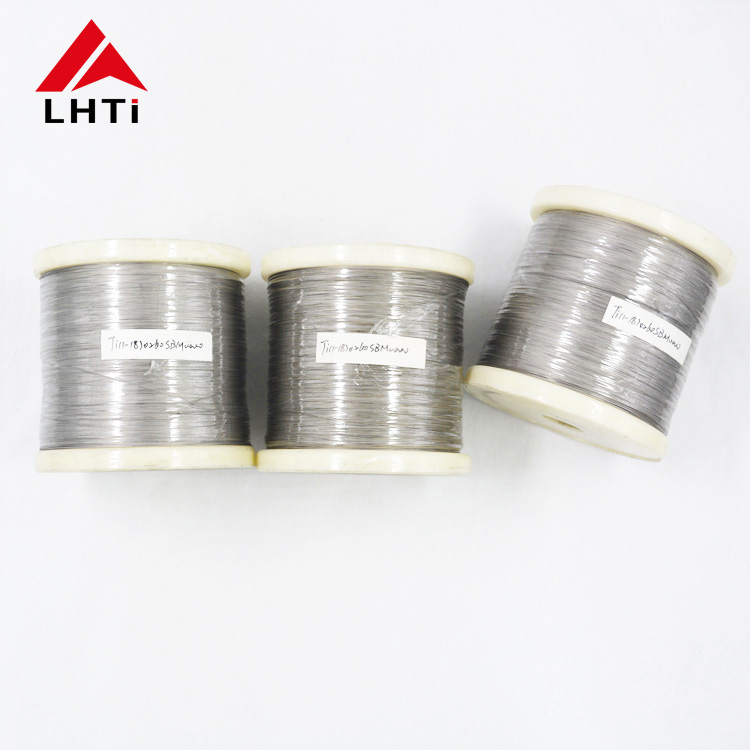

product-1-1
